SPECIFICATIONS

Applicable Lights: 5CH CCT DIM RGB RGBW LED Strip Light

Brand Name: AELED

Certification: ce,EMC,FCC,LVD,ROHS,UL

Connection Mode: Common anode

Controled Method: PC/Phone

Features: Time LED Controller

High-concerned chemical: None

Item Type: RGB controler

Material: Aluminum/Plastic

Max. Load Power: 12V 240W,24V 480W

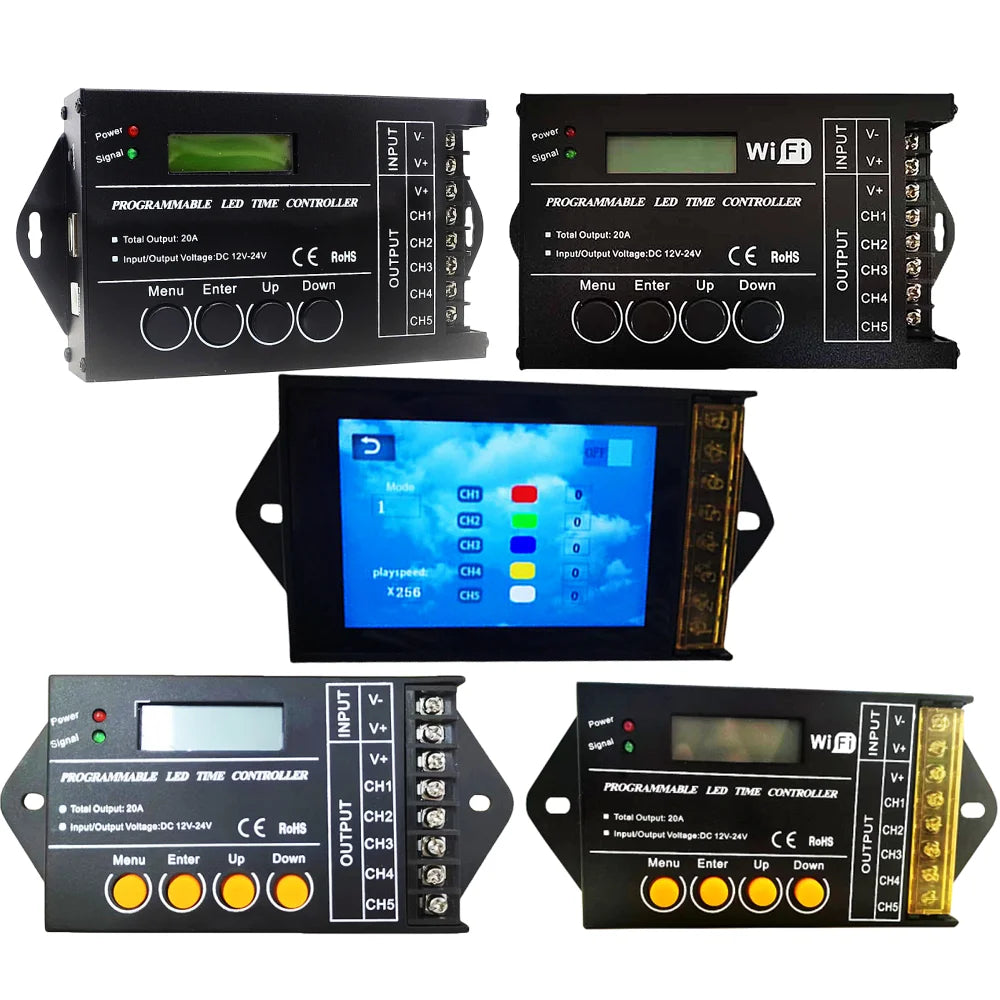

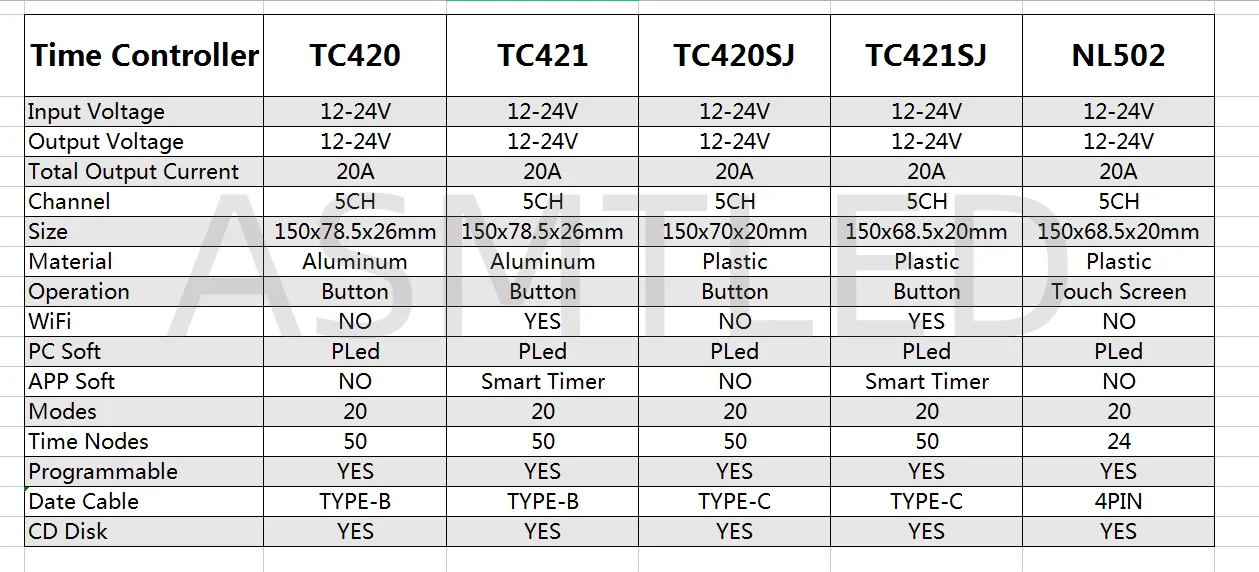

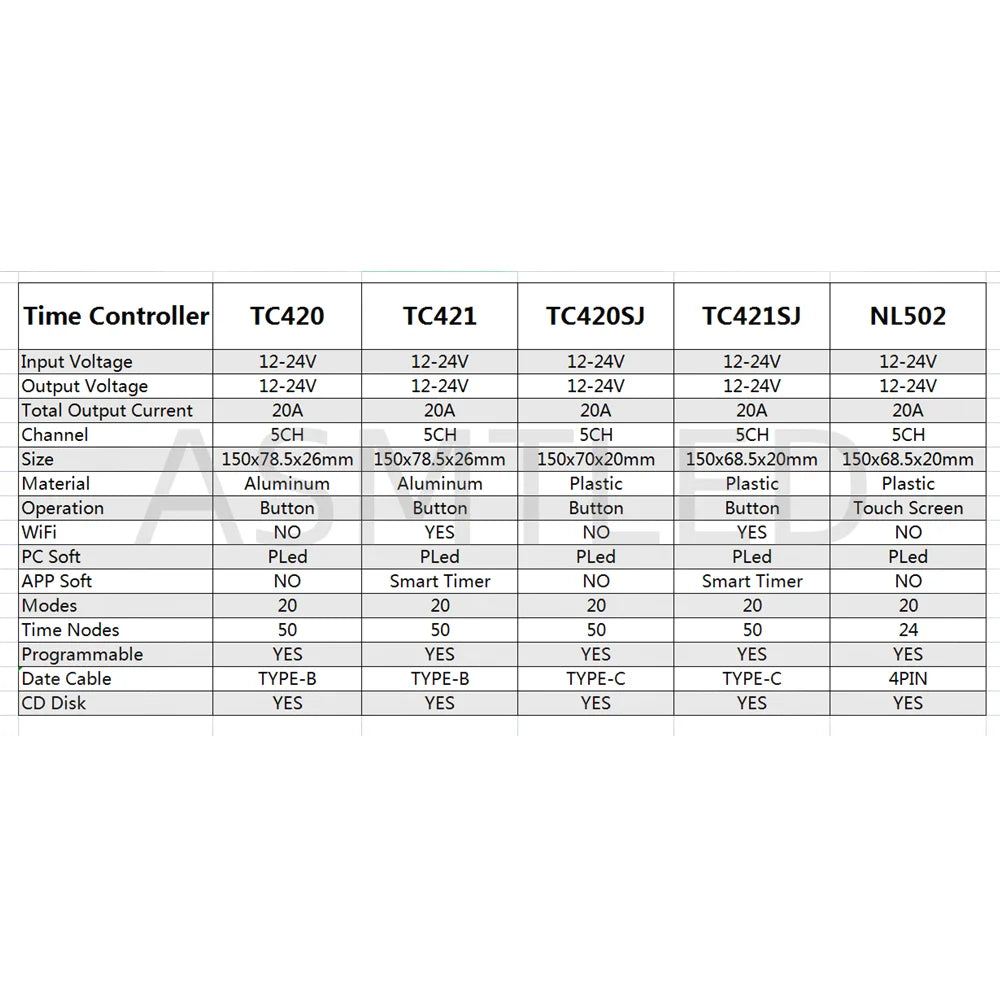

Model Number: TC420/TC421/TC420SJ/TC421SJ/NL502

Origin: Mainland China

Oscillation frequency: 2.4Ghz WiFi

Power Source: DC

Voltage: 12-24v

Warranty: 2Years

Wattage: <1W

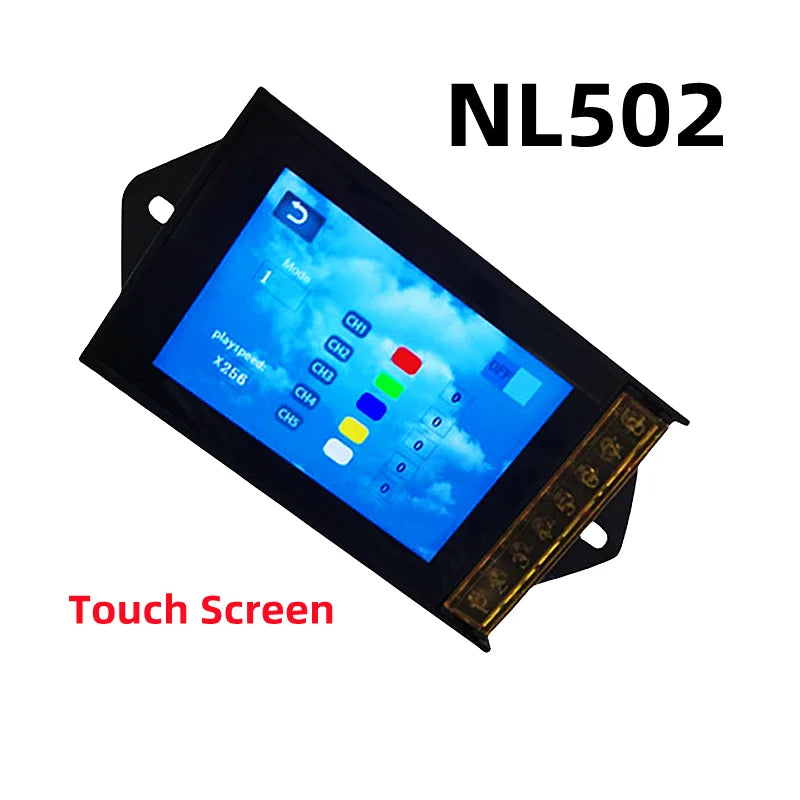

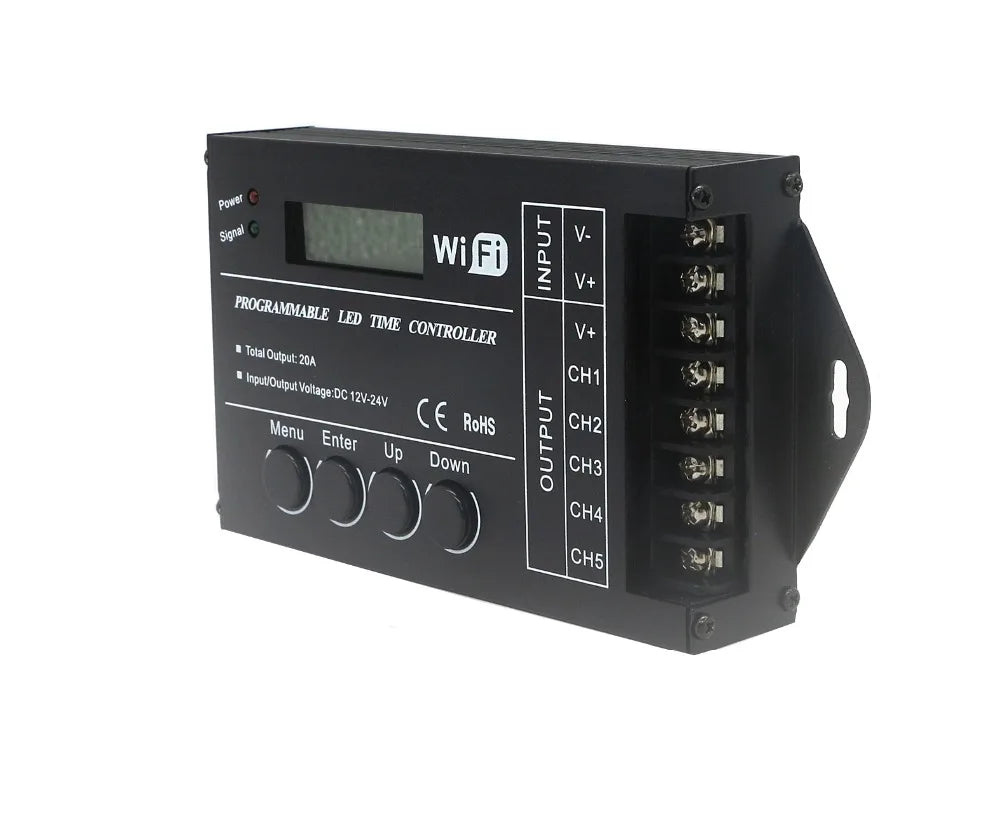

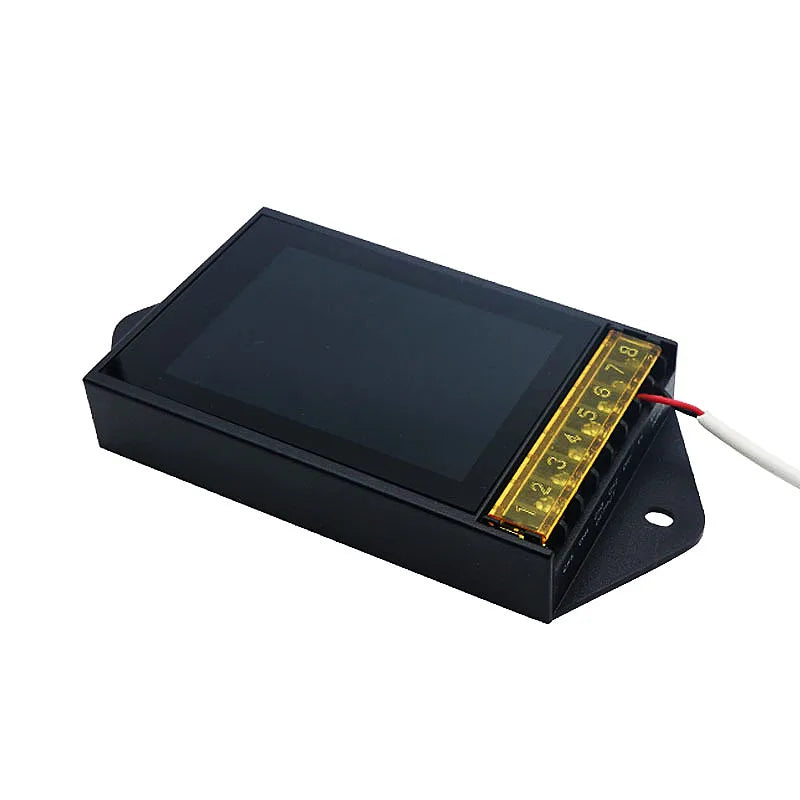

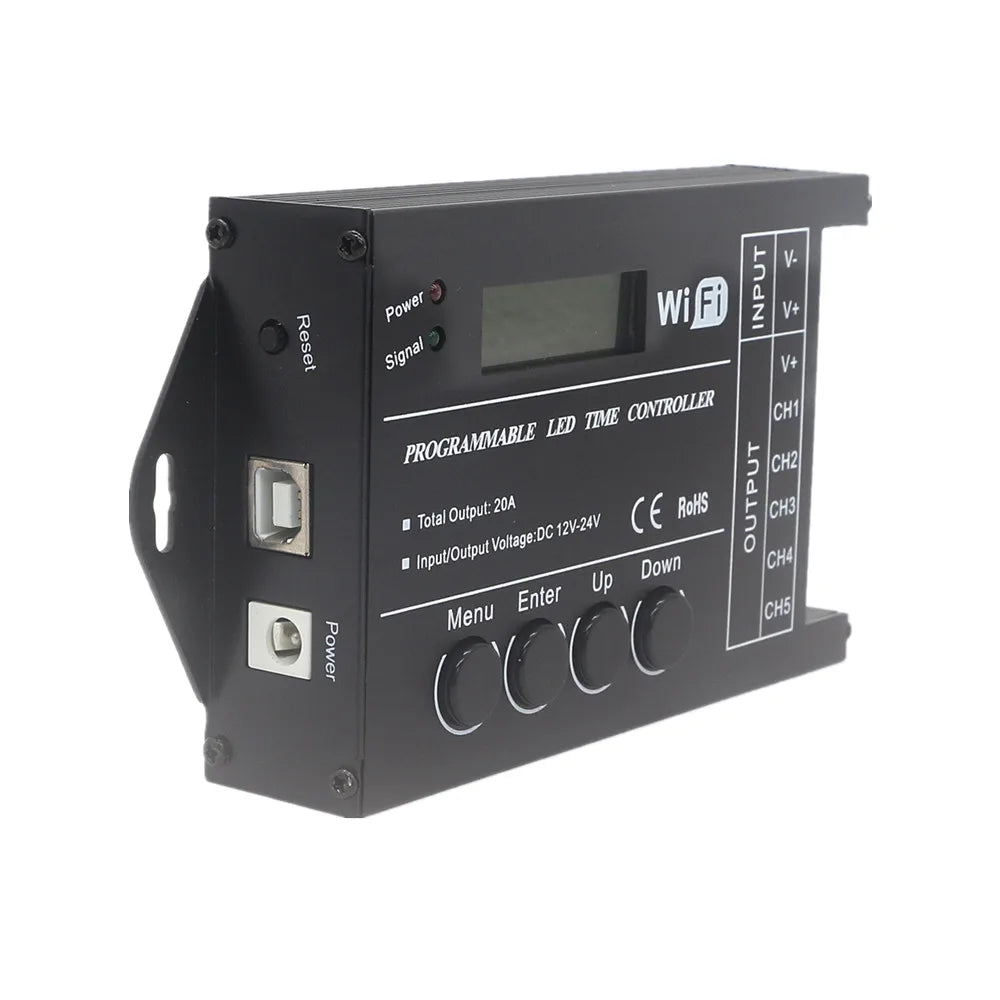

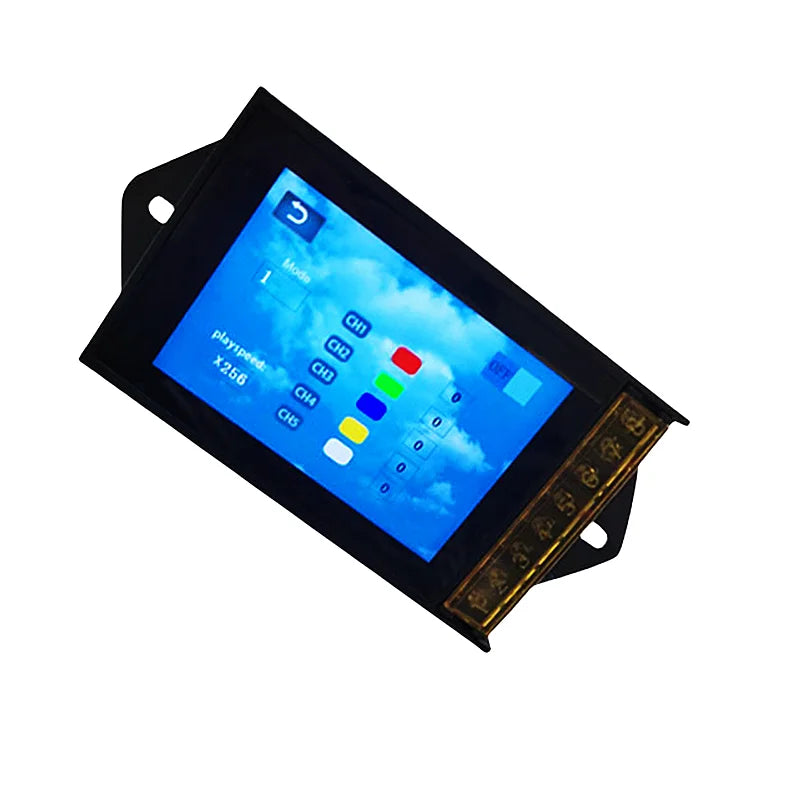

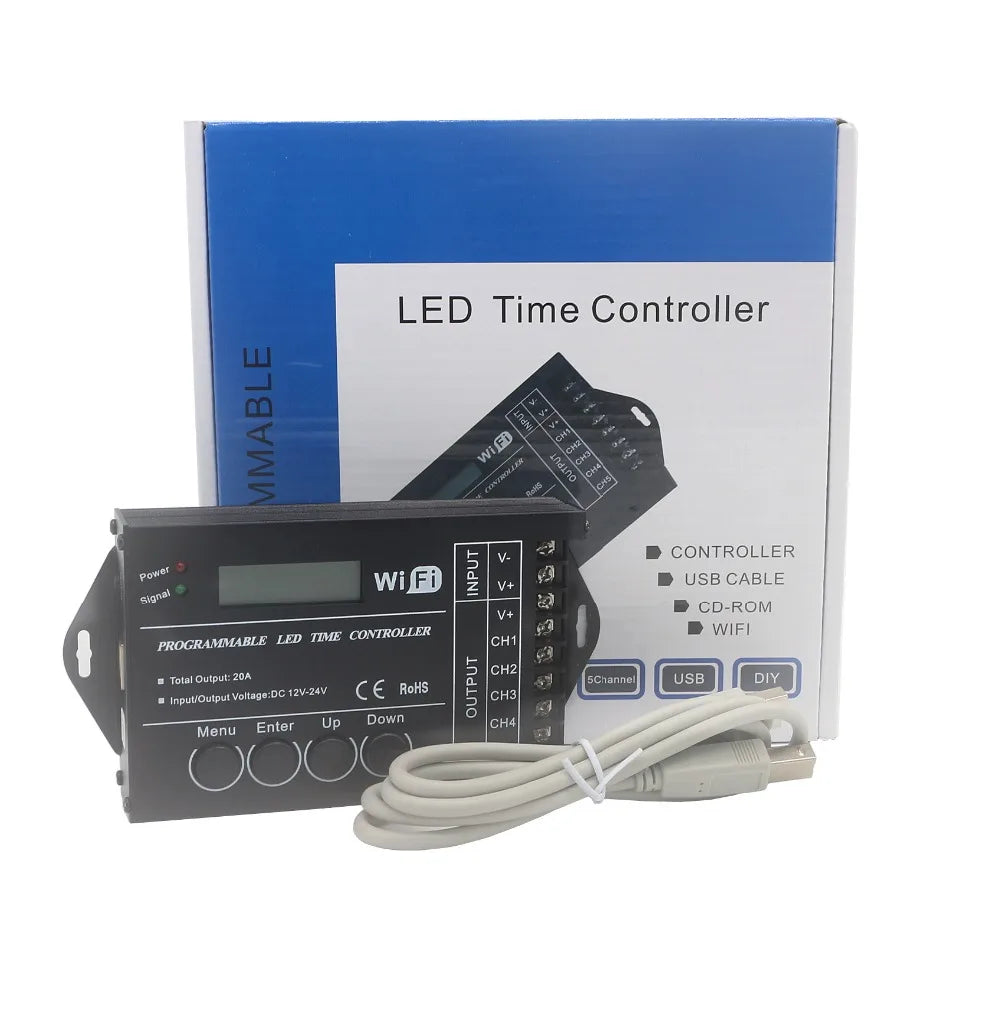

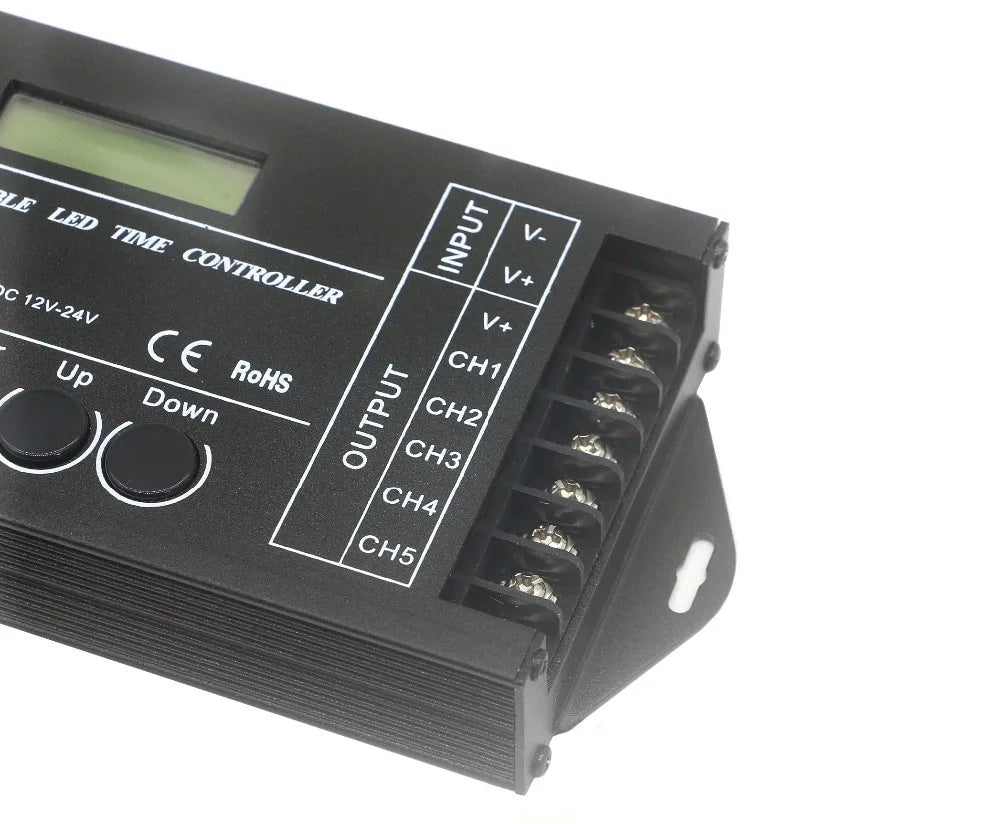

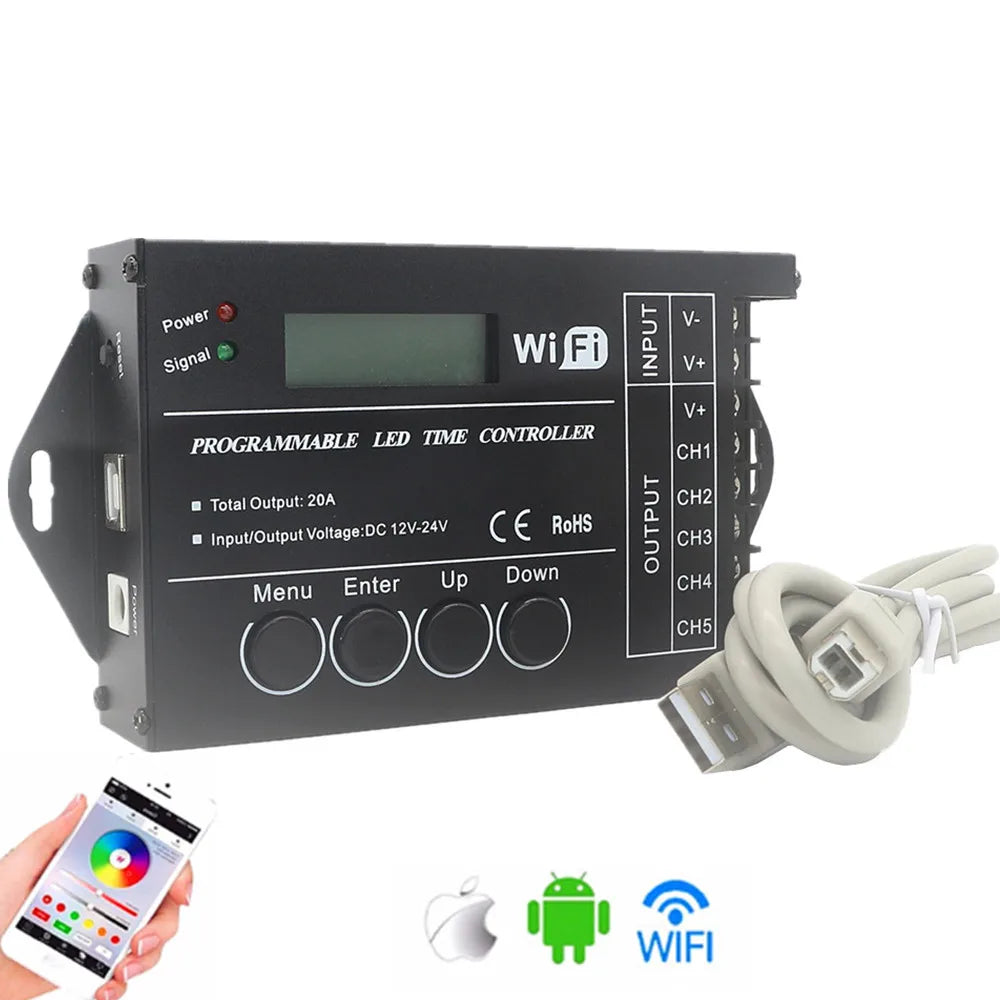

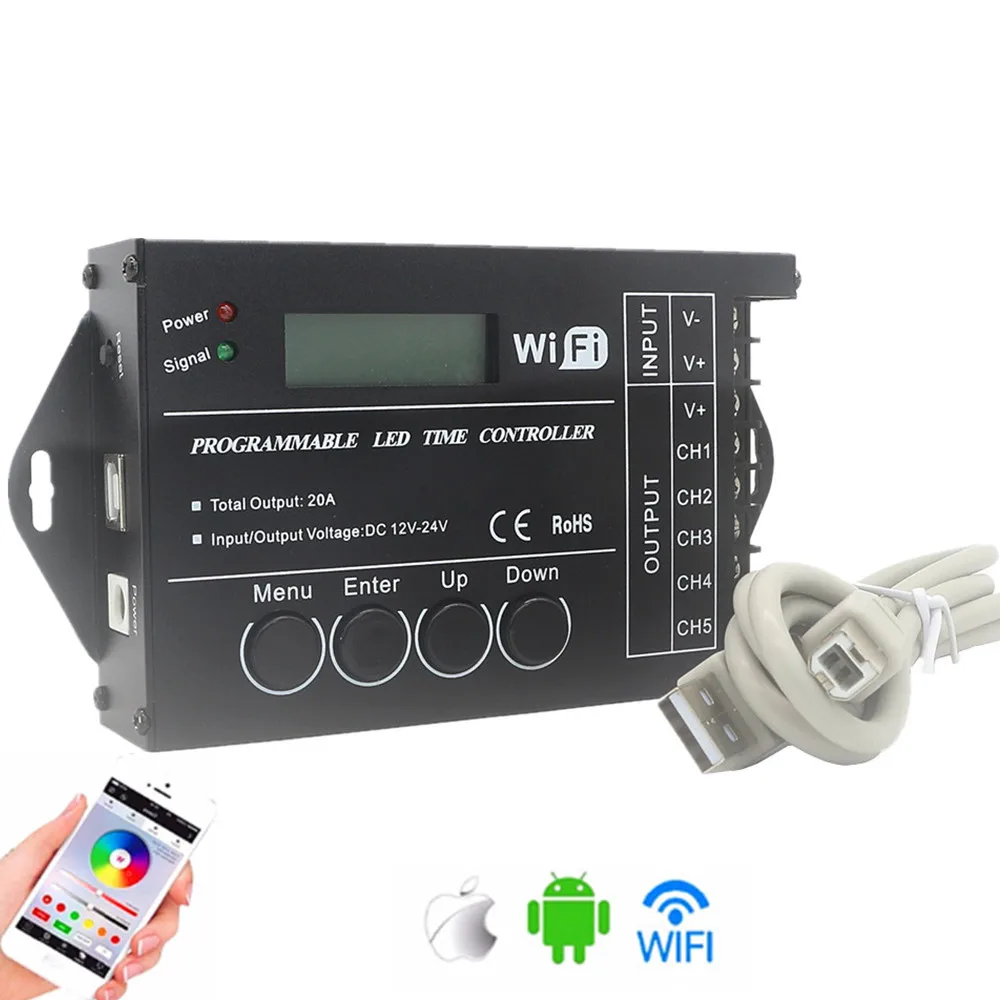

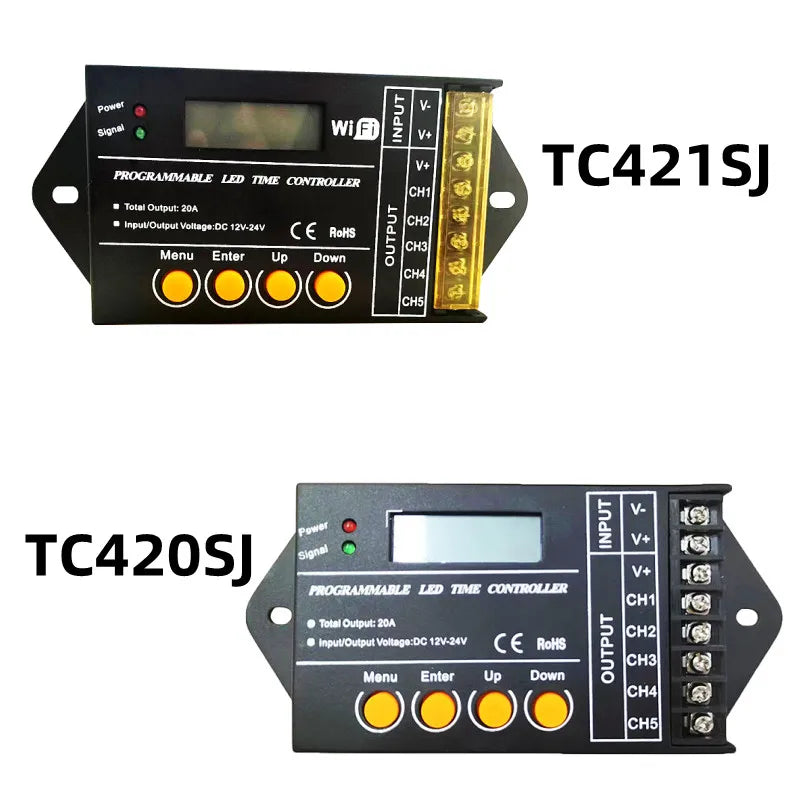

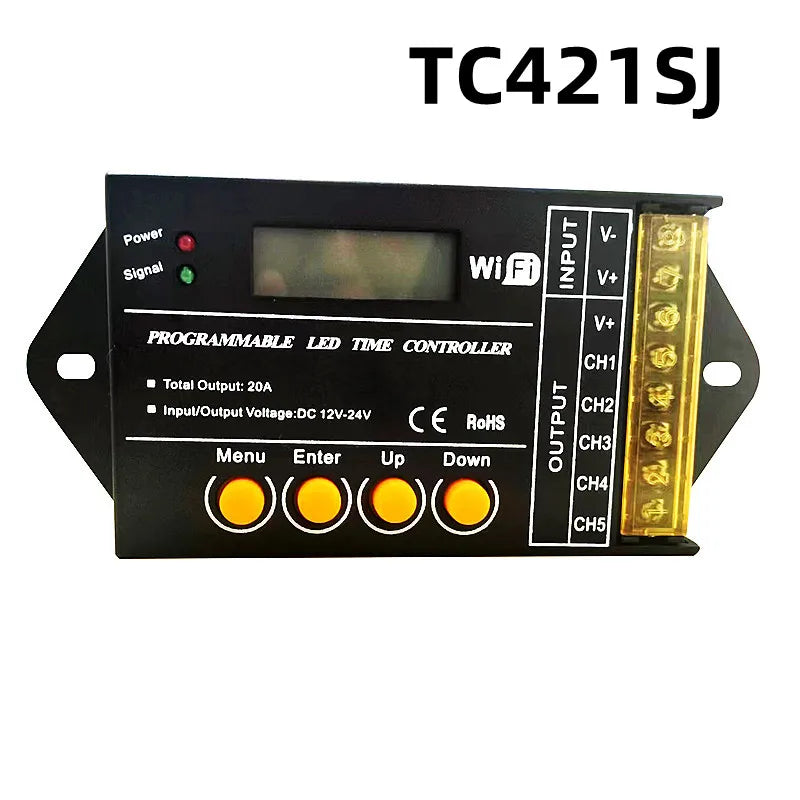

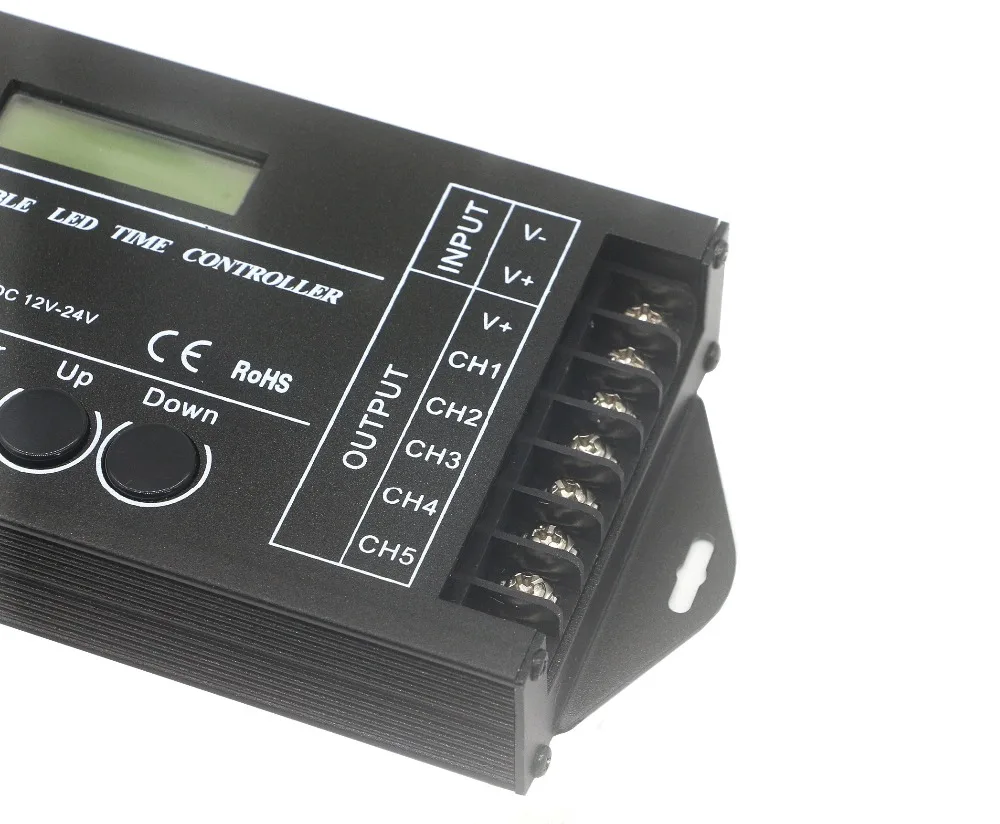

Touch Screen WiFi Time Programmable RGBW LED Controller TC421 TC420 TC421SJ TC420SJ NL502 12V 24V 5CH 20A LED Strip Dimmer

Description:

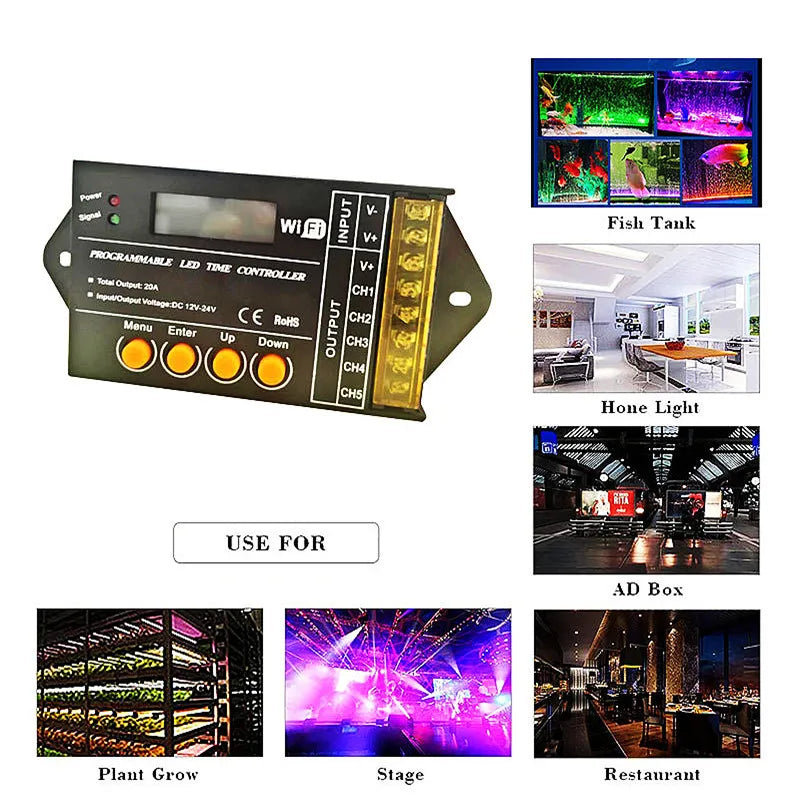

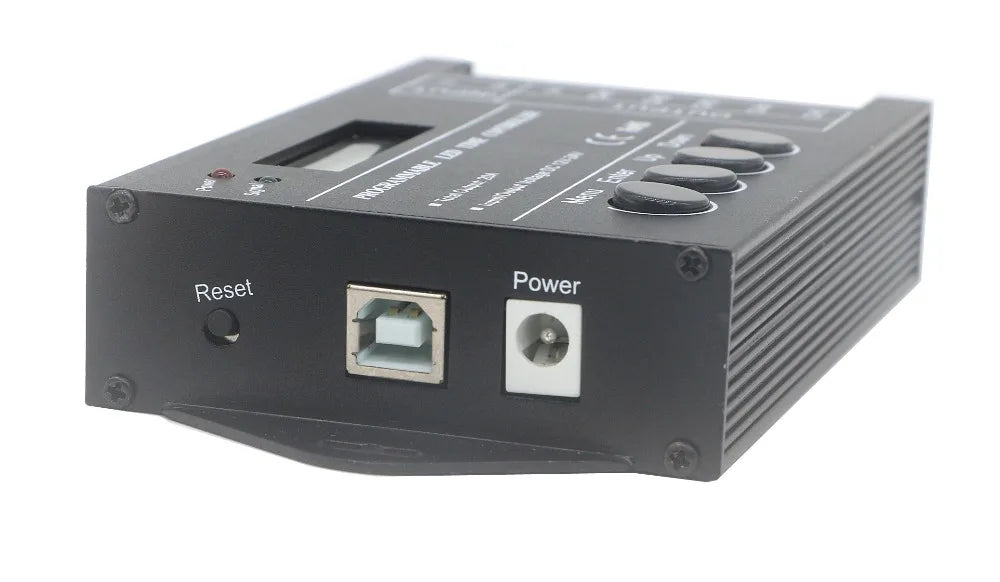

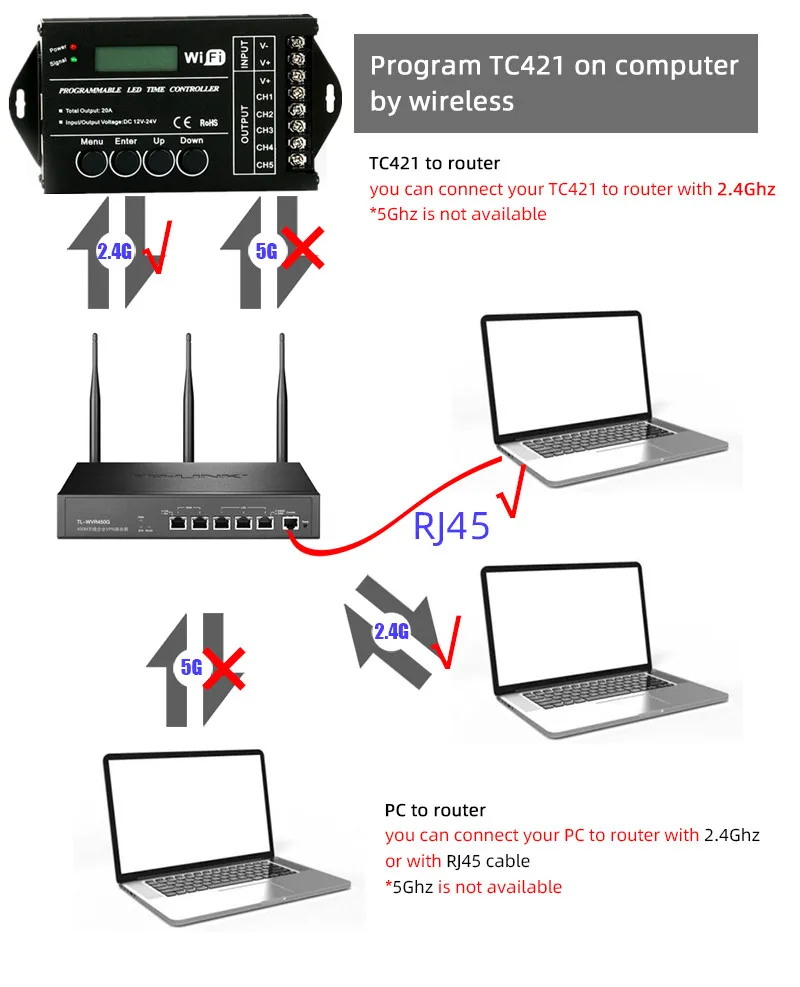

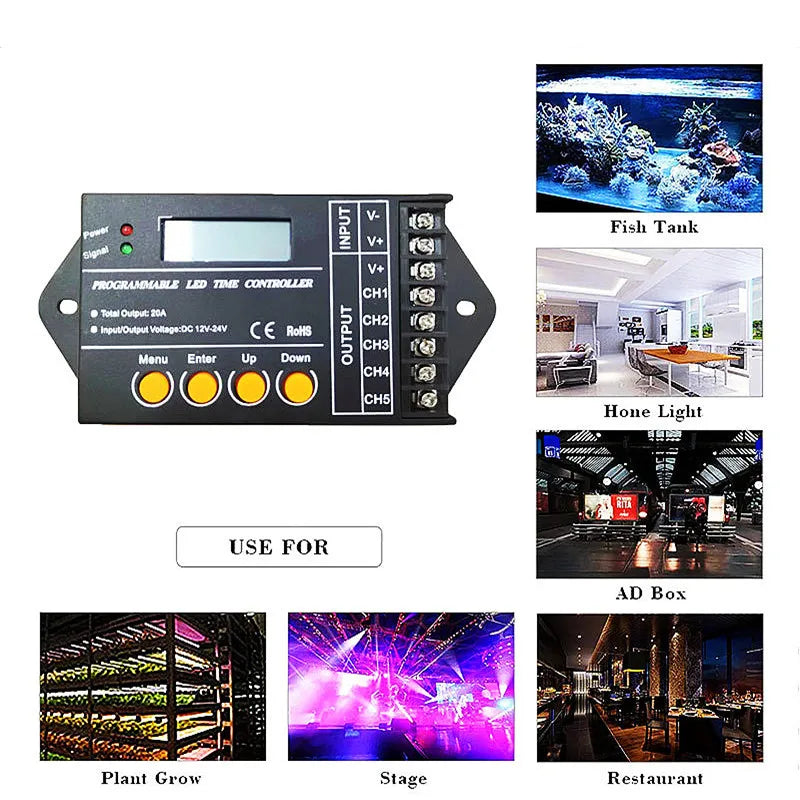

Here is an upper computer in the programmable time controller to make the load output change over time, the customer may customize schedule mode they want through the upper PC. Then through the USB port to download required schedule to the controller.The upper PC in addition to the function of editing schedule mode ,it also can be setup time for the controller because of synchronous clock function of upper host .If user want to see the schedule mode effect after editing , they can use fast sowing function of upper . Because there is no delete function of the upper host ,so the mode name display space will come into blank as long as you execute delete .This controller can control load of led changing effect no more than five channels .And it can be used in the occasion of the plant lights, light box advertising, the stage, home decoration, etc.

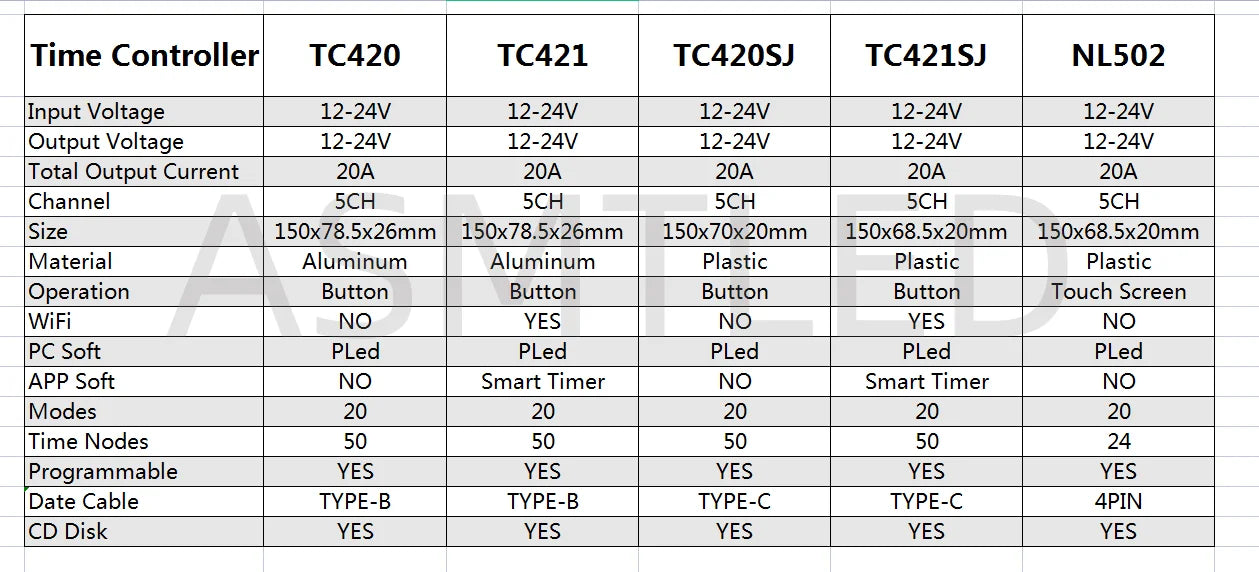

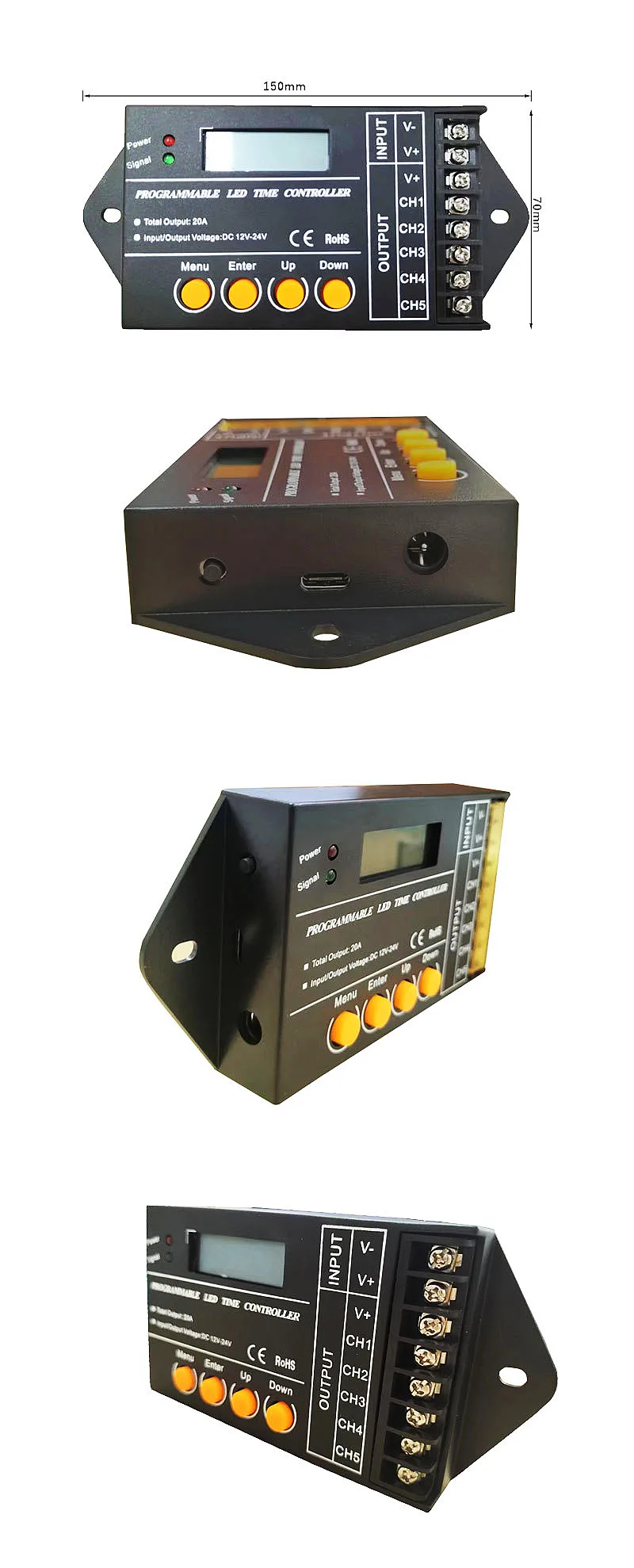

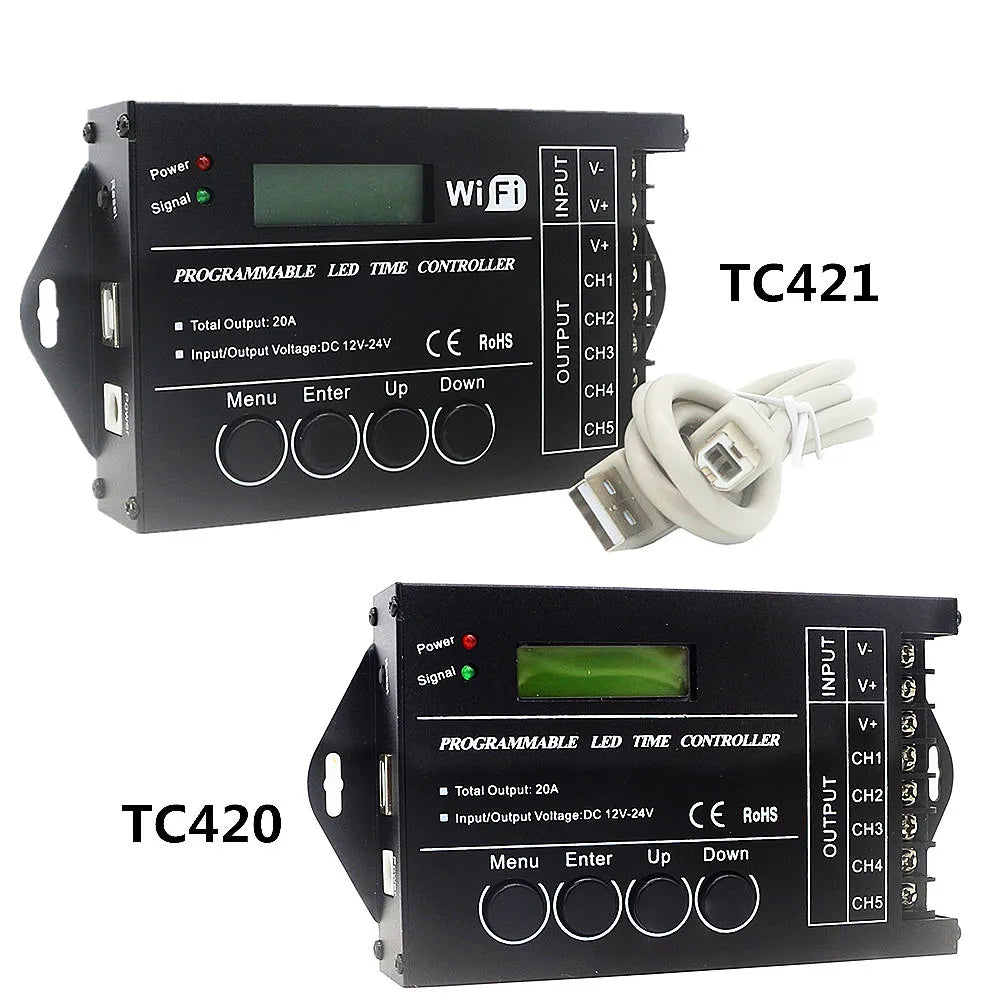

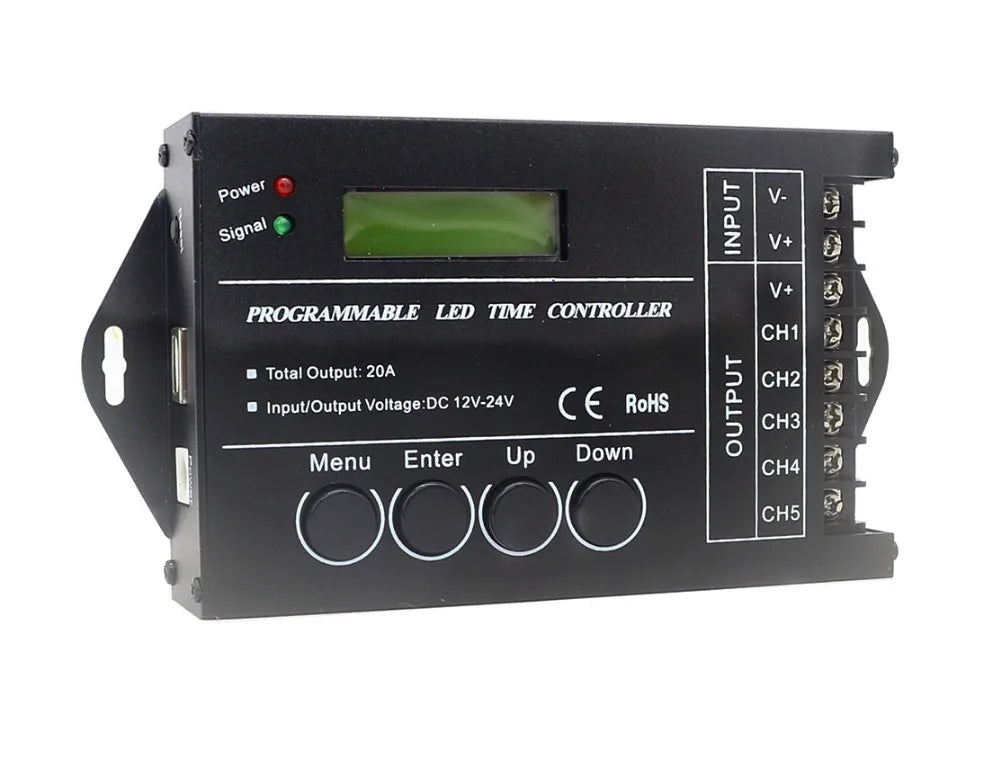

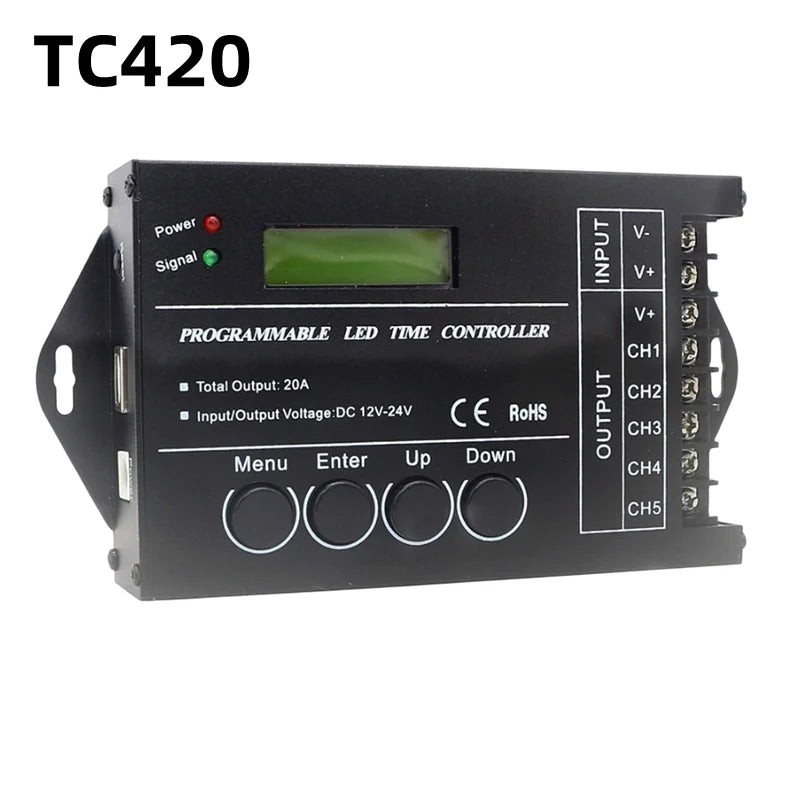

TC420

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

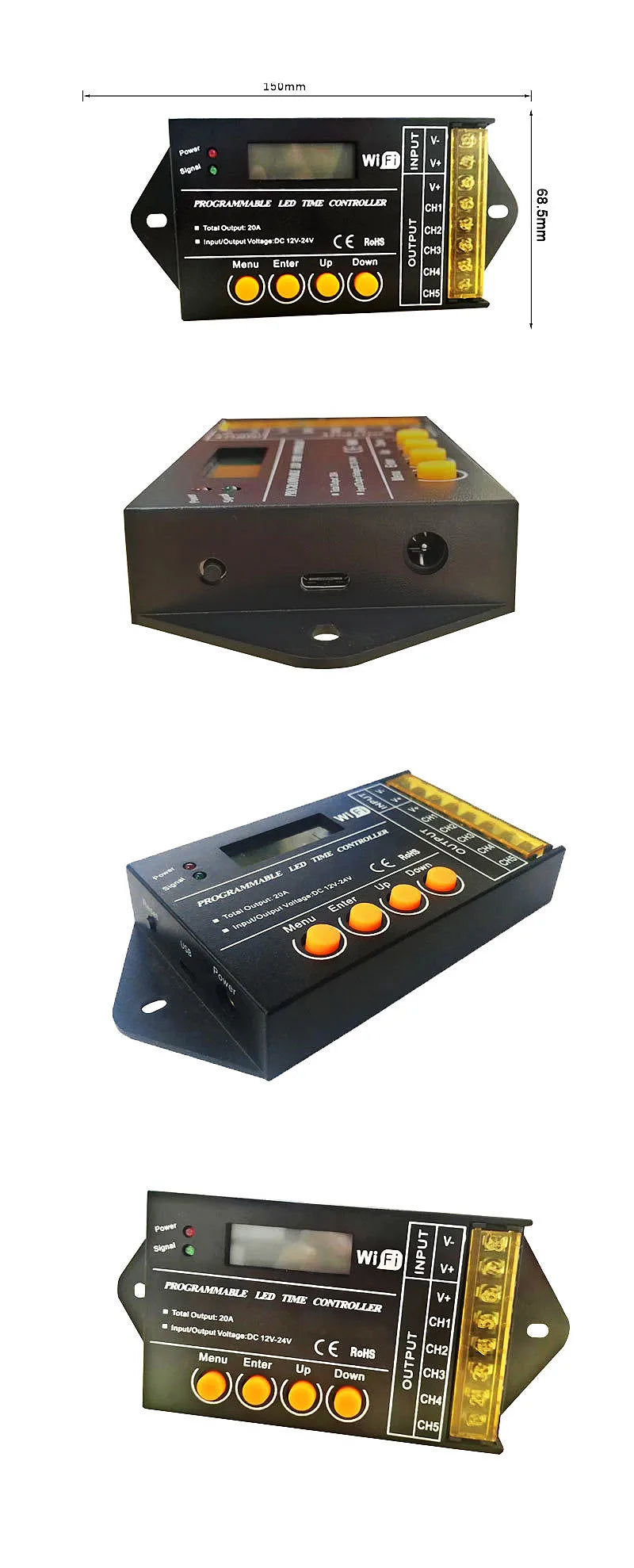

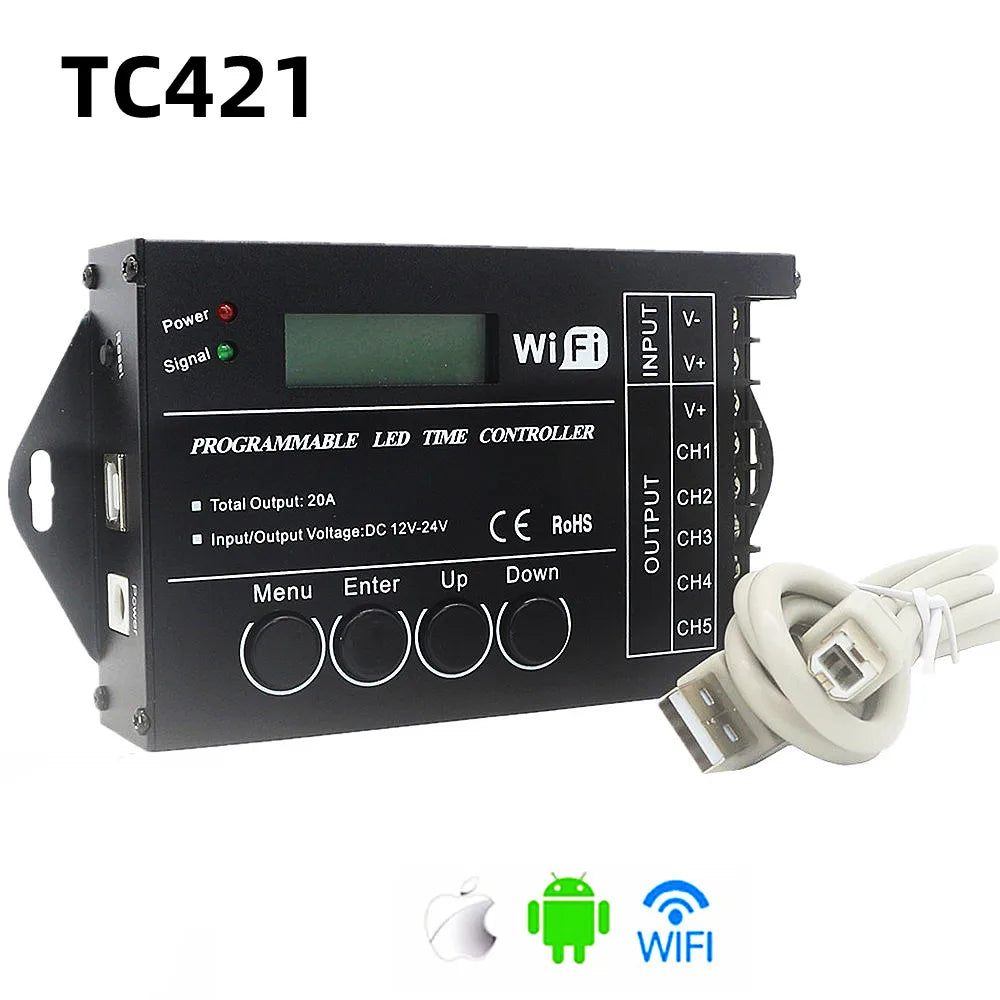

TC421
